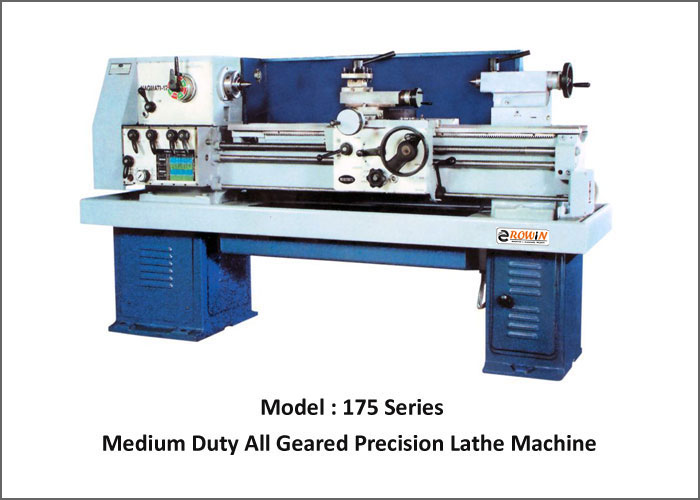

All Geared Lathe Machine

Salient Features:-

Rigid Body Structure
Casting with high strength
Hardened Bedways
Best quality Electrical
Easy to Operate
Rigid Gear Box with wide Range of Speeds

Technical Specification:-

MODEL	LGH-6.5	LGH-8	LGH-10
LENGTH OF BED	1980	2440	3050
WIDTH OF BED	330	330	330
HEIGTH OF CENTER	240	240	305
SWING OVER BED	480	480	590
SWING OVER CROSS SLIDE	280	280	330
SPINDLE HOLLOW	63	63	63
NO. OF SPINDLE SPEEDS	8	8	8
RANGE OF SPINDLE SPEED R.P.M.	45-800	45-800	45-800
RANGE OF T.P.I. THREAD CUT	4-56	4-56	4-56
RANGE OF M.M. THREAD	0.5-6	0.5-6	0.5-6
DIA & T.P.I. OF LEAD SCREW	45/4	45/4	45/4
TAPPER IN TAIL STOCK	MT-4	MT-4	MT-4
POWER REQUIRED IN H.P.	3	3	5

Standard Accessories:-

One Back Plate for Chuck, Face Plate, Dead Centre, Thread Indicator Dial, Chip Tray, Splash Guard

Optional Accessories:-

Electric Motor, V-Belts, Chucks, Packing Quick Change Tool Post & whichever not mentioned in standard accessories.
