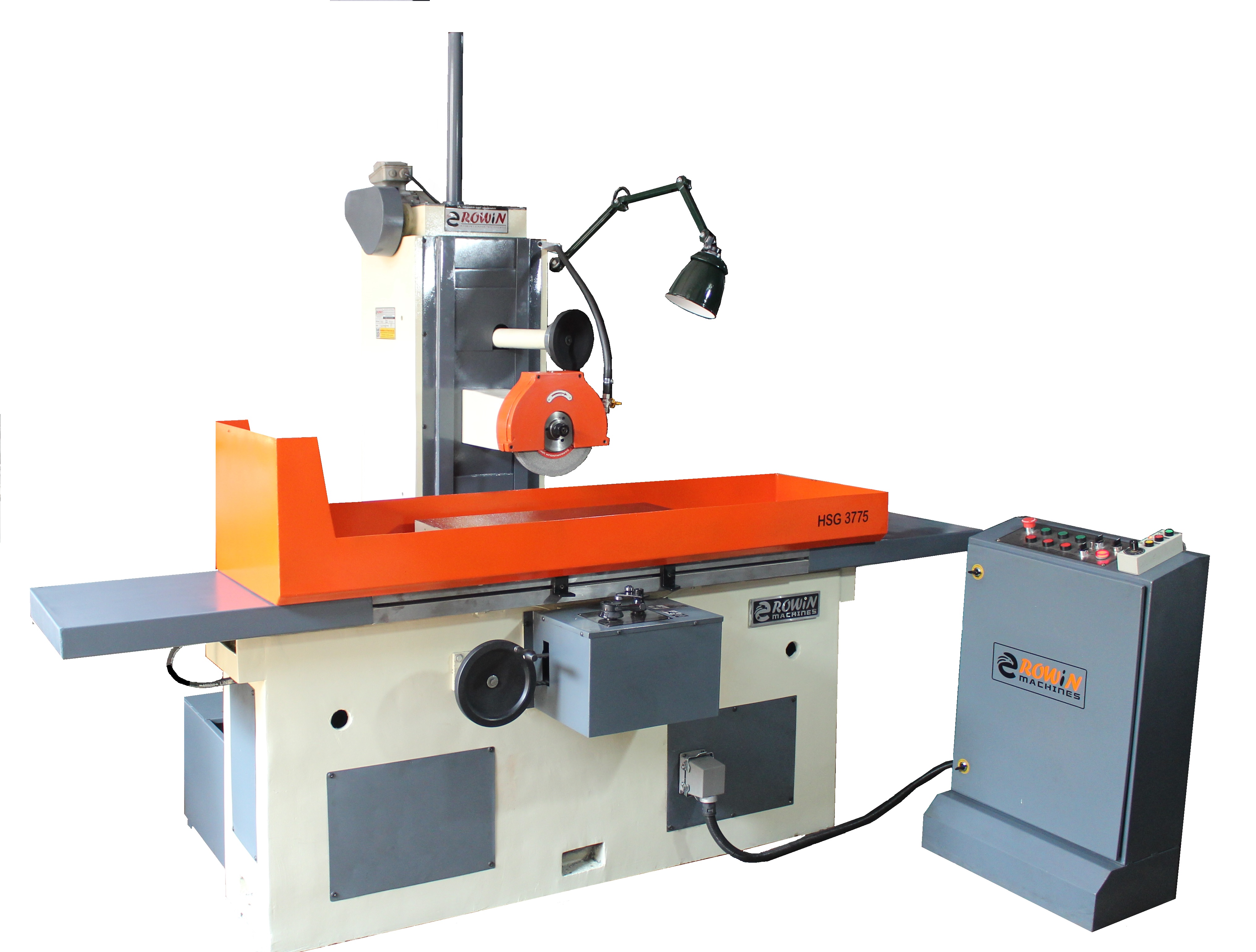

Hydraulic-Surface-Grinder

SPECIFICATIONS FOR HORIZONTAL SURFACE GRINDER

MODEL

HSG-2550

HSG-2560

HSG-3060

HSG-3775

GENERAL CAPACITY

Working Surface

250x500

250x600

300x600

375x750

Longitudinal Traverse (Max.)

500

600

600

750

No. of T Slots

1

1

2

2

CROSS FEED

Total Cross Traverse

270

270

325

375

Movement Per Rev. of Hand Wheel

0.05mm

0.05mm

0.05mm

0.05mm

VERTICAL MOVEMENT

Hand Feed Per Revolution

1mm

1mm

1mm

1mm

Hand Feed Per Division

0.01mm

0.01mm

0.01mm

0.01mm

WHEEL HEAD

Size of Grinding Wheel (ØxWidthxBore)

200x13x31.75

200x13x31.75

200x19x31.75

250x25x75

Speed of Grinding Wheel

2880

2880

2880

2880

Capacity between Wheel & Table (New Wheel)

275

275

275

375

ELECTRICAL

Wheel Head Motor

1 HP

1HP

1.5 HP

3 HP

Table Feed Motor (For Auto Drive)

1 HP

1 HP

1 HP

1 HP

Hydraulic Motor

1 HP

1 HP

1 HP

1.5 HP

Coolant Pump

0.12 Kw.

0.12 Kw.

0.12 Kw.

0.12 Kw.

Cross Feed (For Hydraulic)

0.18 HP

0.18 HP

0.18 HP

0.5 HP

FLOOR SPACE

Length x Width

1900x1420

2185x1575

2450x1650

2550x1775

Length x Width x Height of Machine

1450x1140x1575

1575x1245x1575

1850x1350x1585

1950x1450x1695

Length x Width x Height of Packing Case

1750x1300x1800

1750x1300x1800

1850x1400x1800

1950x1500x1900
